Experiment 1_SKETCH UP FINAL MODELS AND SKETCHES

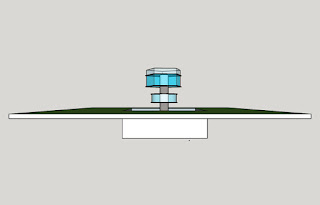

SKETCHUP FINAL MODEL BACK VIEW ISO VIEW TOP VIEW TOP LEVEL WITHOUT ROOF (CAFETERIA) UNDERGROUND DETAIL (LUNCH AREA) THE STAIRS GO FROM GROUND FLOOR TO UNDERGROUND. STAIRS STAIR 1 (GROUND FLOOR TO FIRST LEVEL) This staircase is inspired from the word appealing (ADJ for client 2_Gucci Bag. It represents lightness by floating all the way up showing the appealing structure just like when Gucci bags are carried around. As the client walks up the stairs, a sense of elegance will be conveyed by this minimalist aluminium rods holding thin floating layers stairsteps made of translucent gray glass panels. STAIR 2 (ABOVE: RIGHT SIDE from back view) (BELOW: LEFT SIDE from back view) This stairs take the client from the grass land to the ground floor of the building. These stairs bring an interest to the building attracting the clients to walk down and look around. It is made from concrete and polished. STAIR 3 (Non cont
